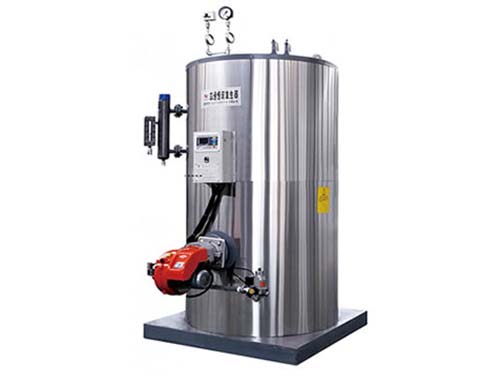

The whole machine is made of stainless steel, no pressure and safe. Automatic control system, one button to start and stop. Fast steam delivery and high efficiency.
No need to be guarded when working. You can choose different power machine according to the module production capacity, and one machine can support several module products.
Accelerate the solidification of concrete modular house by delivering steam, increase its strength quickly and improve production efficiency.
1. Equipment Parameters
1) Efficiency: 500-1000kg/h Evaporation
2) Preset Pressure: 0.7Mpa
3) Temperature: 170celsius
4) Voltage: 380V
5) Power: 1.4-3.3kw
6) Weight: 2500-4500kg
7) Size: Diameter 1.05-1.5m
8) Height: 2.6-2.8m
2. Equipment Advantages
The whole machine is made of stainless steel, no pressure and safe. Automatic control system, one button to start
and stop. Fast steam delivery and high efficiency.
No need to be guarded when working. You can choose different power machine according to the module production capacity, and one machine can support several module products.
3. Equipment Usage
Accelerate the solidification of concrete modular house by delivering steam, increase its strength quickly and improve production efficiency.
Coal/diesel/natural gas | ||||||||
Item | evaporation capacity（T/h） | Equipment diameter（mm） | Height（mm） | Rated pressure（MPa） | Softened water device（T/h） | Coal burning（kg/h） | Burning diesel oil（kg/h） | Burning natural gas（m³/h） |
1 | 0.5 | 1150 | 2200 | 0.1 | 1 | 70 | 35 | 45 |
2 | 0.7 | 1250 | 2300 | 0.1 | 1 | 105 | 45 | 60 |
3 | 1 | 1350 | 2400 | 0.1 | 1 | 140 | 65 | 75 |
